JPL实验室做深空探测天线的那帮家伙弄出来的控制系统设计全流程，从系统建模、扰动建模、参数辨识、控制器设计一应俱全，很有启发意义的

1.Short Description of the Antenna Control System

1.1 组成

The antenna controller consists of two independent subsystems: azimuth and elevation controllers （转台或者就是云台）

azimuth (vertical)

elevation (horizontal)

1.2 控制框图

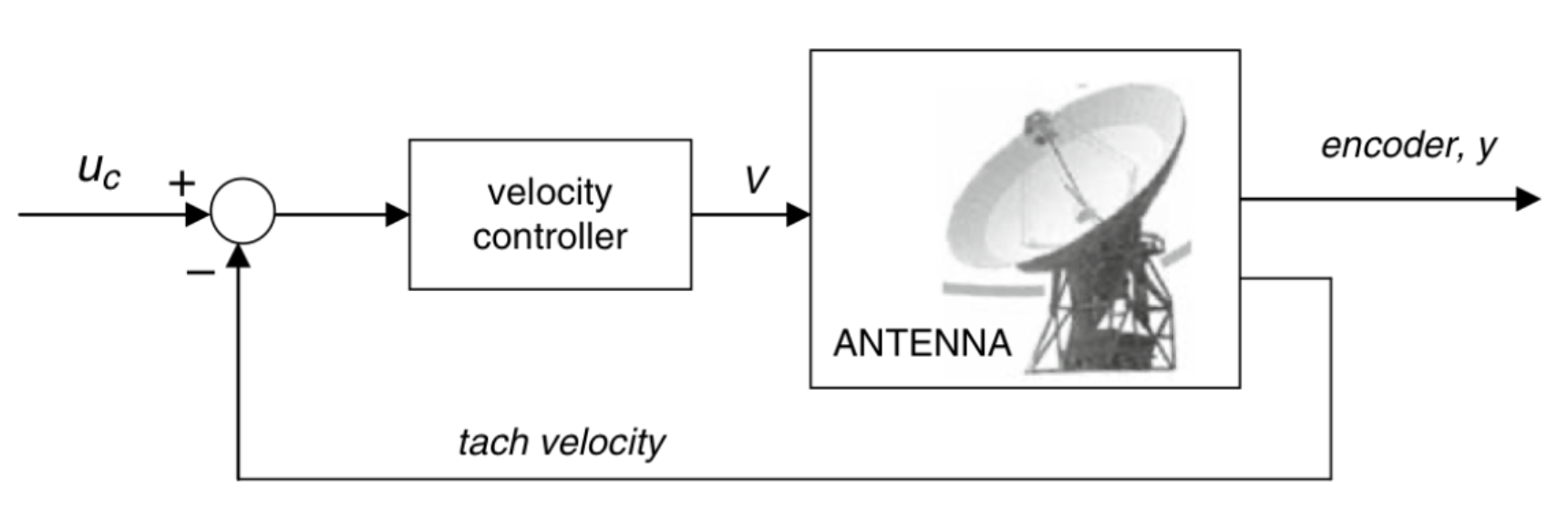

Velocity Loop:

image-20250608211111780

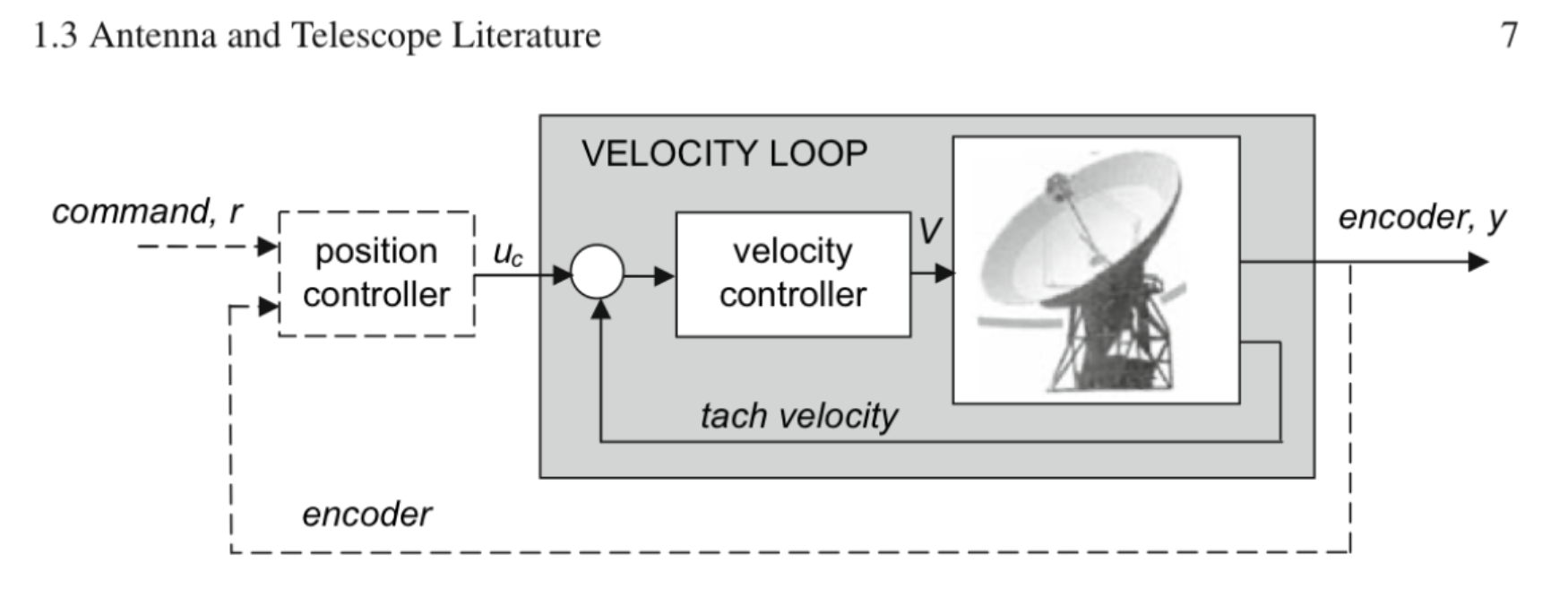

Position-Loop

image-20250608211152610

2. MODELING

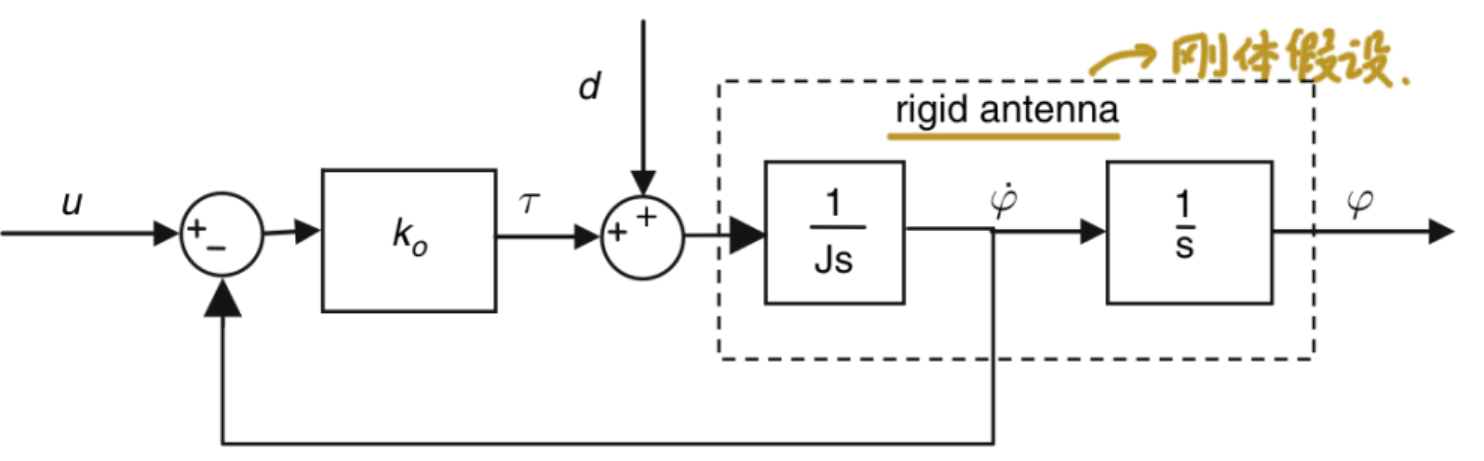

2.1 Analytical Models

image-20250608211313780

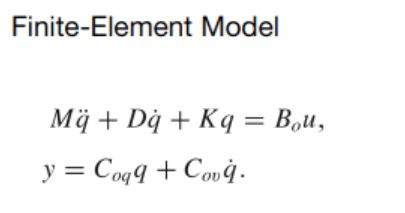

2.1.1 Structural Model

image-20250608211346020

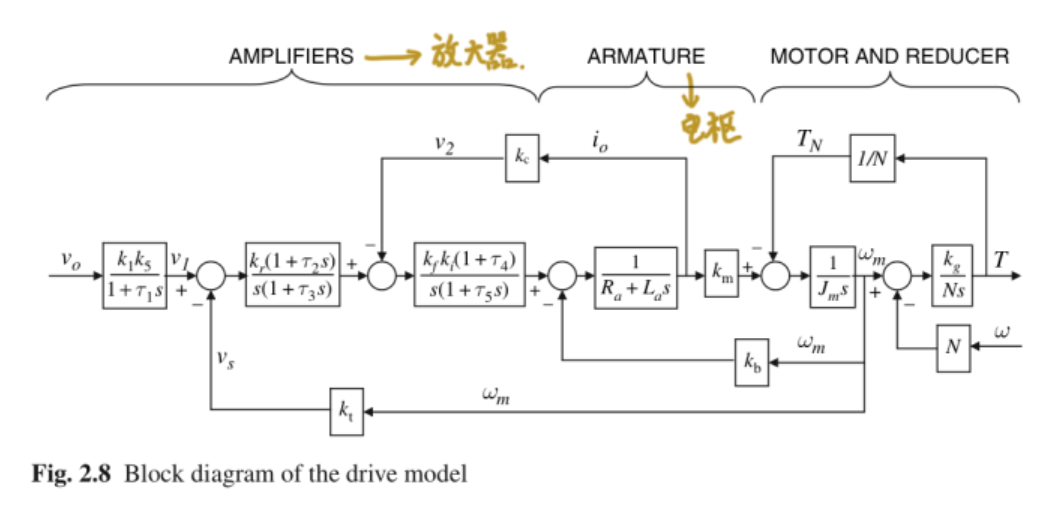

2.1.2 Drive Model

image-20250608211408466

2.2 Models from Identification

The white noise is a random signal of even spectrum within the antenna bandwidth; hence each frequency component of the antenna dynamics is excited evenly

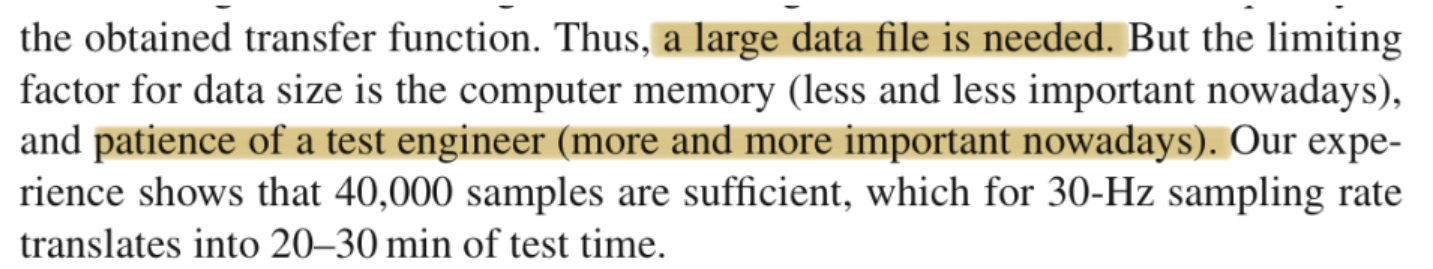

White Noise Testing of the Antenna

The sweep-sine excites antenna resonances, causing wear, and excites antenna backlash since resonance forces exceed antibacklash torques.

主要是担心结构磨损和反冲backlash

image-20250608211539011

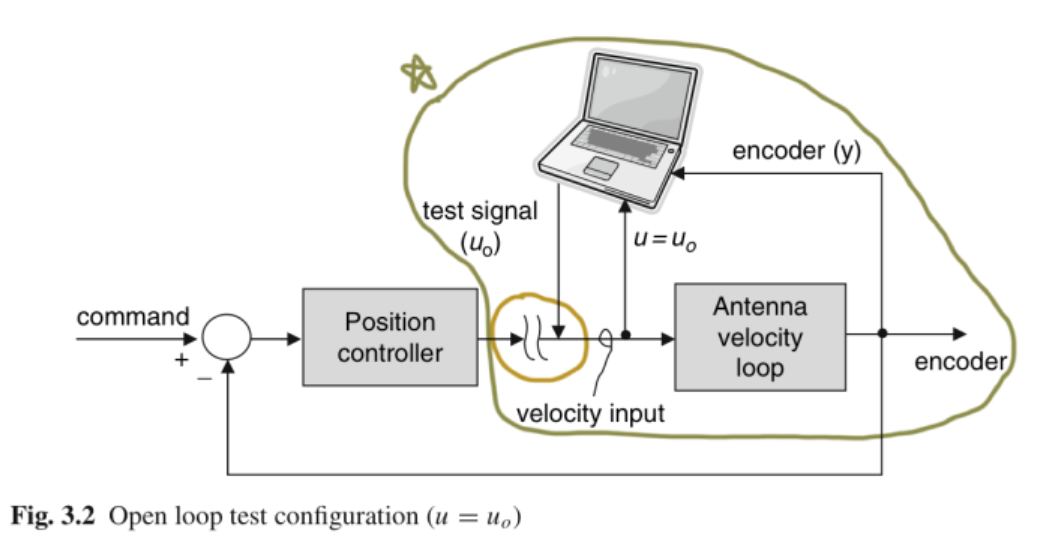

2.2.1 Open loop test

image-20250608211557908

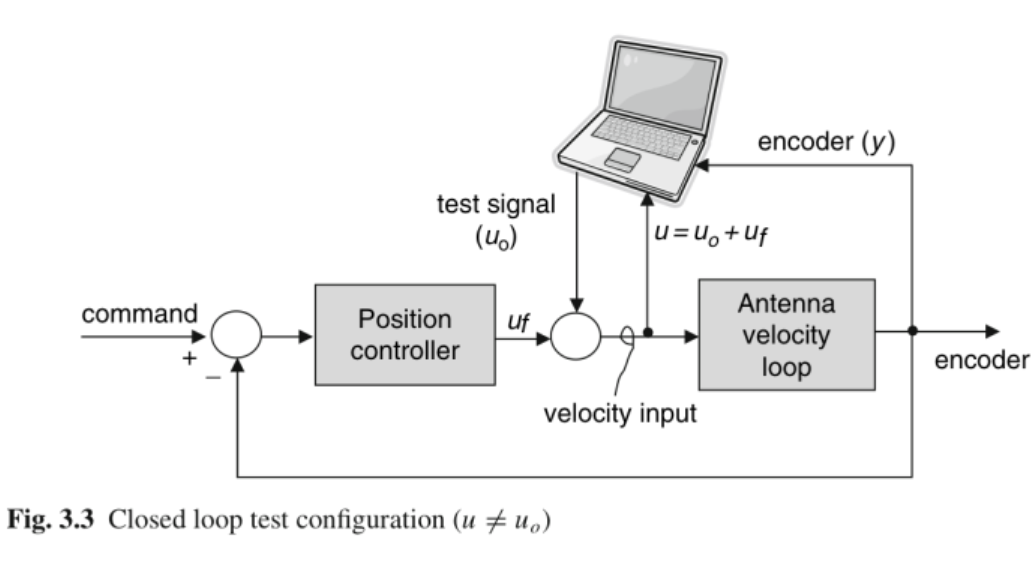

2.2.2 Closed loop test

image-20250608211614912

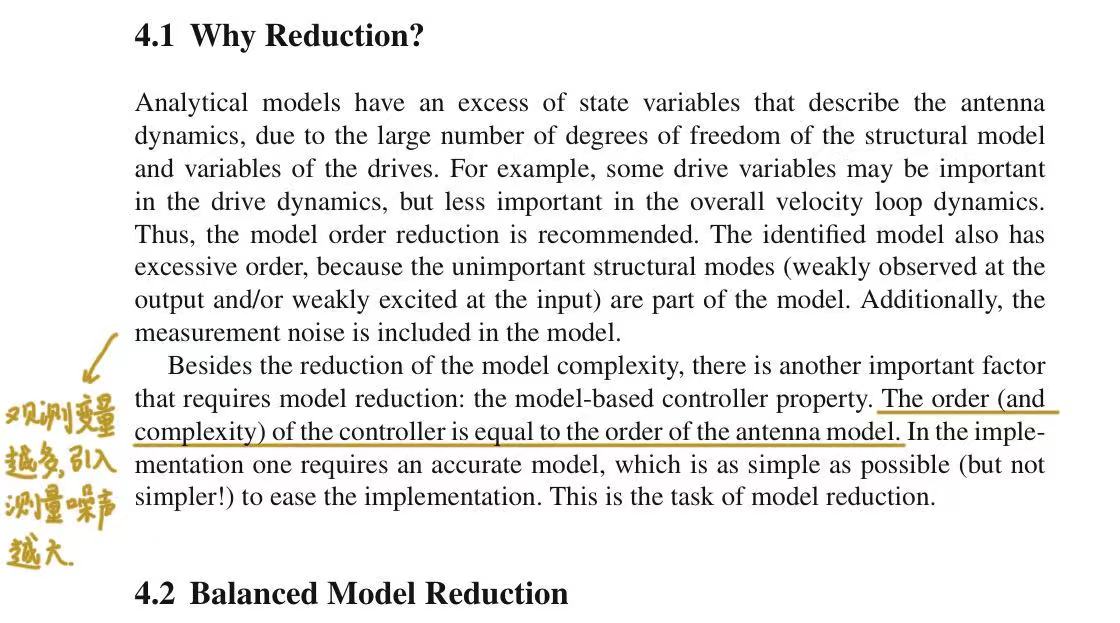

2.3 Model Reduction

Additionally, the measurement noise is included in the model

5d58a8662348f41efac437c9d4b8c2a

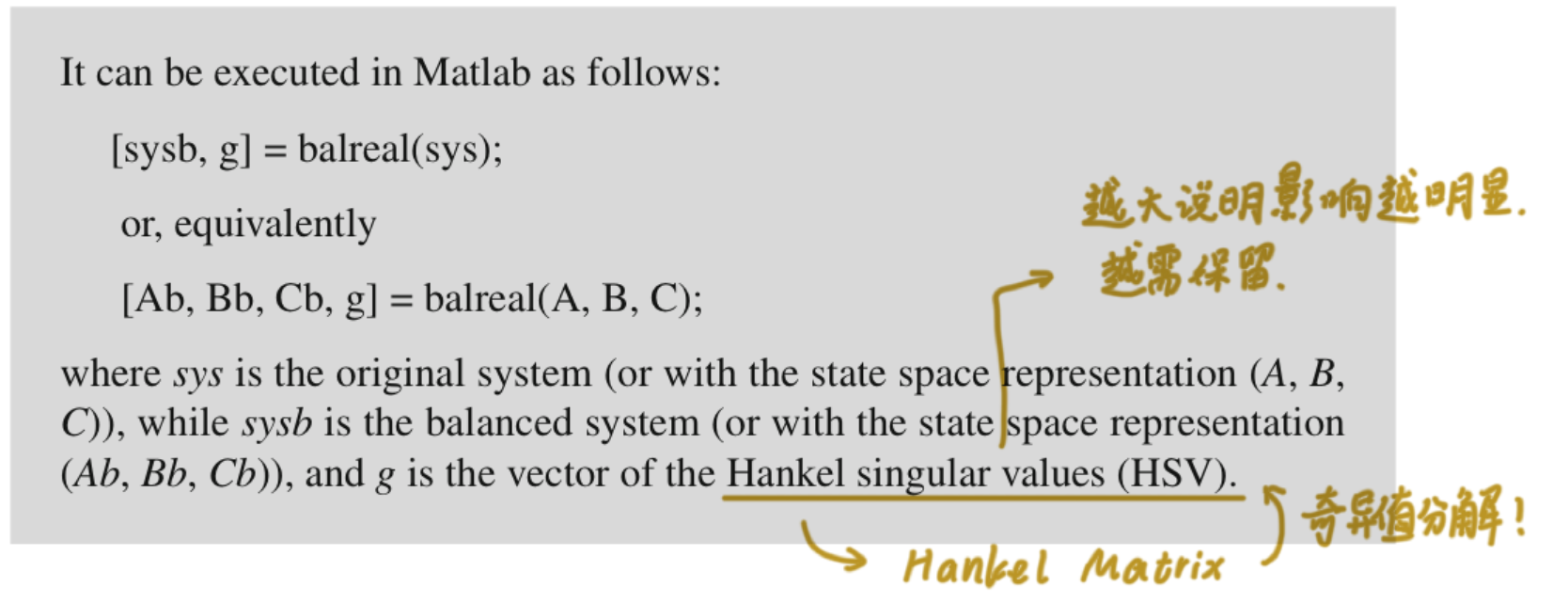

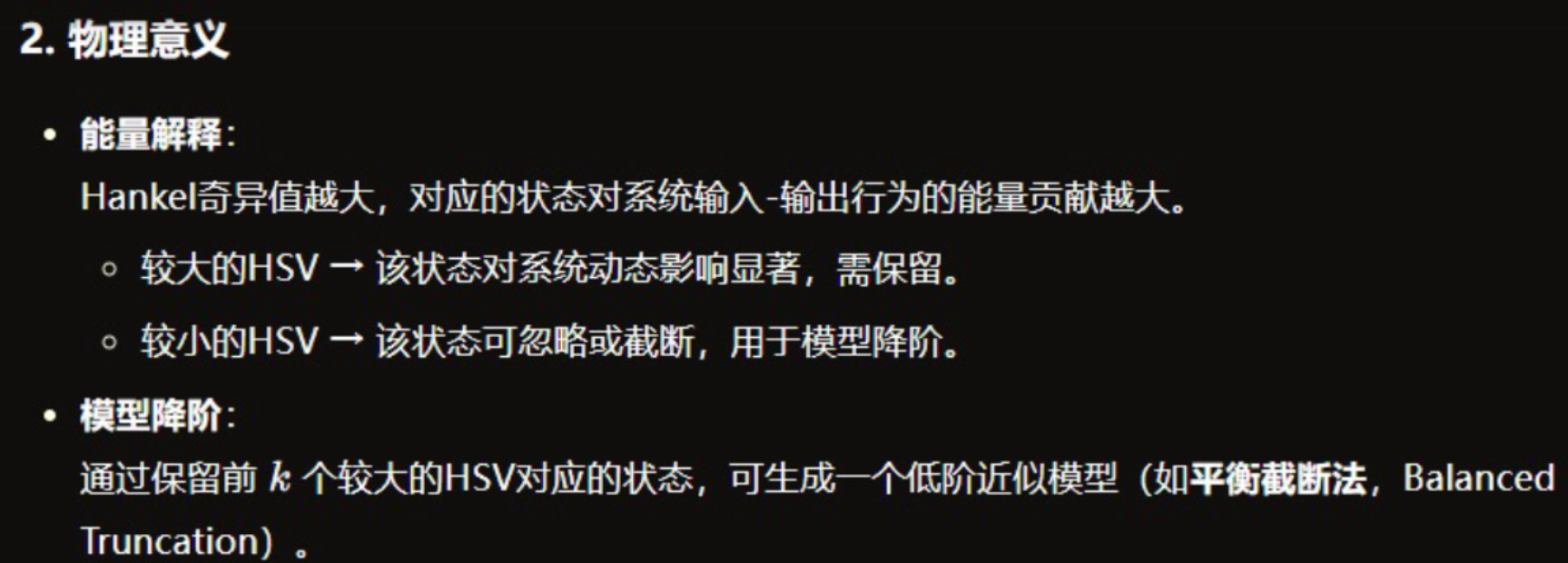

Balanced Model Reduction with Hankel singular values (HSV)

image-20250608211820687

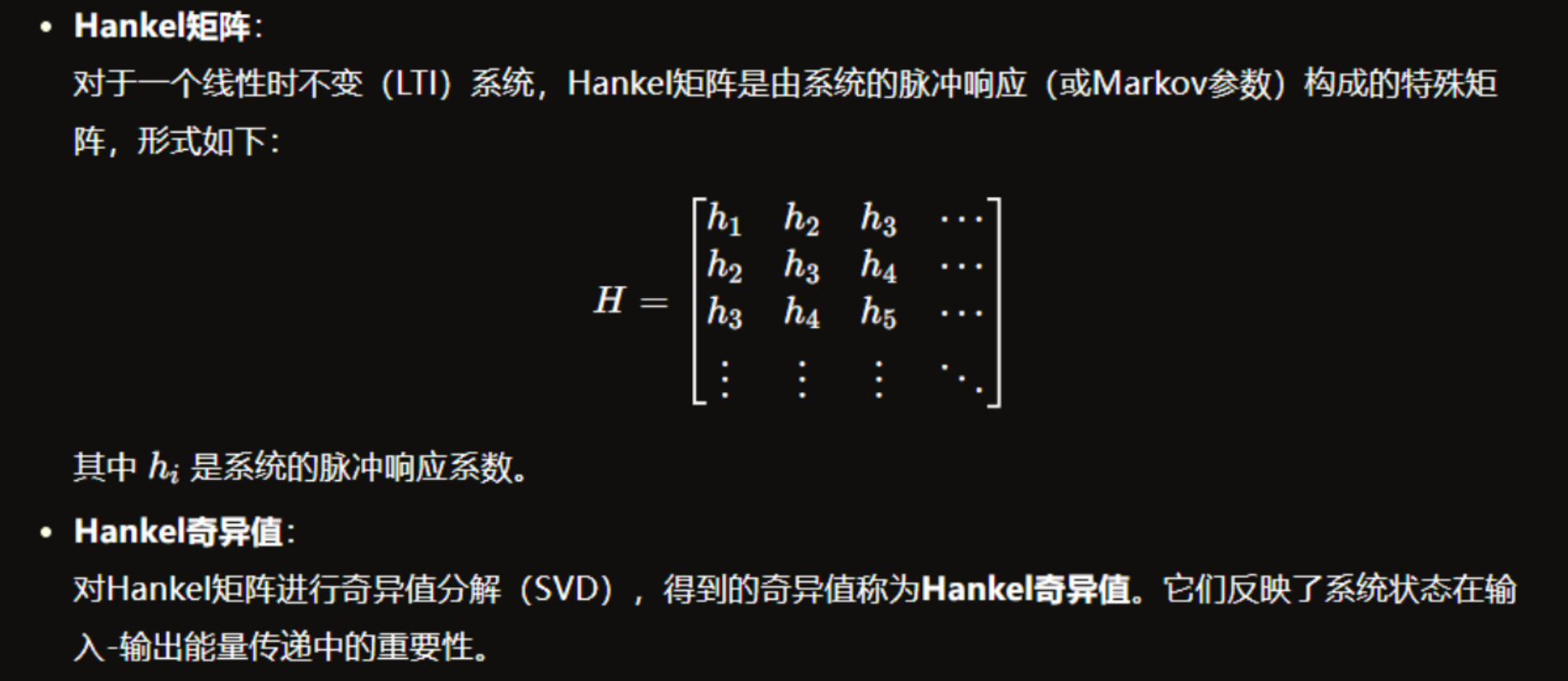

HANKEL MATRIX

image-20250608211842410

image-20250608211857429

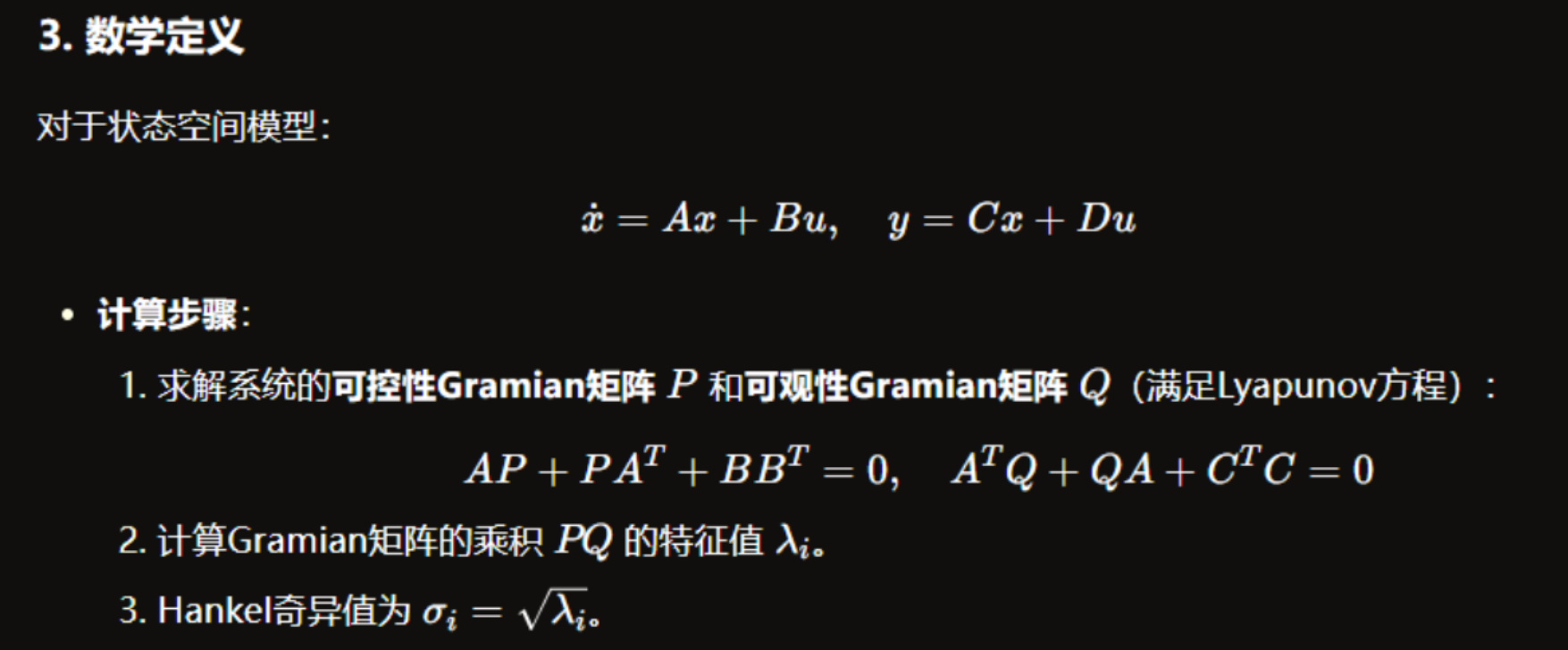

image-20250608211906555
